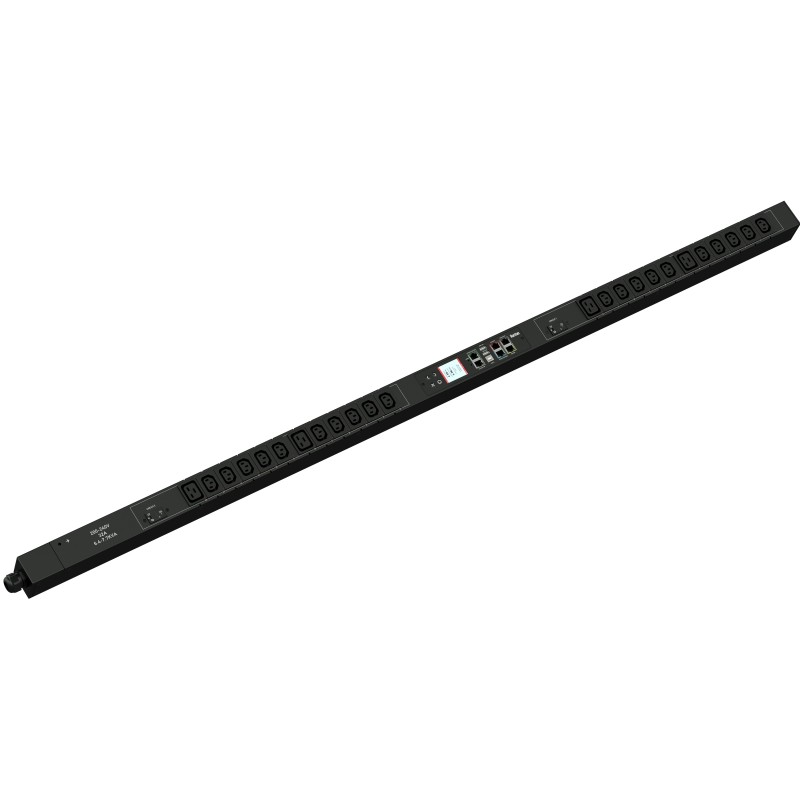

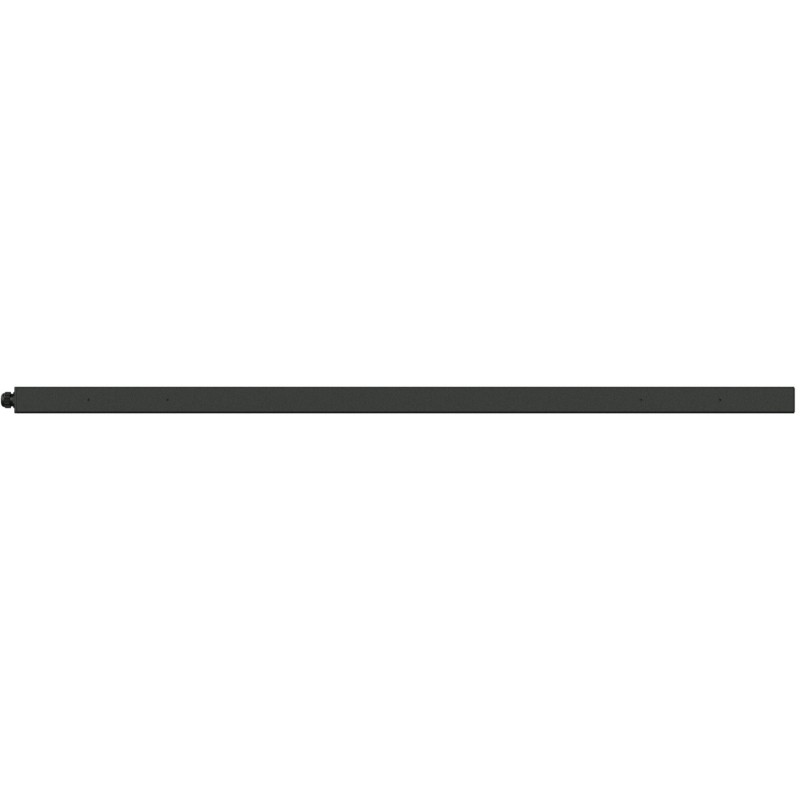

PDU 1PH, 230V AC, 32A, 20x C13 4x C19, 7.4kVA Outlet Metered and Switched, Zero U vertical

€1,863.00
Tax excluded

1PH, 230V AC, 32A (32A rated); 24 outlets: 20x C13, 4x C19; plug: IEC 60309 2P+E 6h 32A (Bottom-bottom feed), 7.4kVA; Outlet Metered/Switched, Zero U vertical PDU, SecureLock ready, high resolution color display with field replaceable controller, Ethernet, serial, 2x USB-A, USB-B and sensor connections

Quantity

Monitored and switched rack power distribution unit (0U [vertical], 7.4kVA, 24 outlets). INPUT: 230v, 32a - IEC 60309 2P+E 6h 32A plug (2P3W); OUTPUT: 20x C13, 4x C19 outlets; on 2x 1-pole, 16a Overcurrent Protectors; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per breaker/fuse, per outlet; Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM. Cascading upto 16 PDU's using single Ethernet or USB connection. Environmental monitoring [temp/humidity] capable – up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Dual 10/100/1000 Ethernet port. Tri-color status LED per receptacle. Breaker metering and alarming (0V detection). Max Dimensions 52mm x 65mm x 1539mm (2.1in x 2.6in x 60.6in). Max Weight 5.3 kg. Maximum ambient temperature 60C at full load.

Raritan
PX3-5493V

Data sheet

Phase
1
Volt
230
Ampère
32
Number of outlets
24
Type outlets
C13, C19
Inlet plug
IEC 60309
kVA
7.4
Type
Metered and Switched
Form
0U
Cord length
3
Dimensions
52mm x 65mm x 1539mm
