PDU 1PH, 230V AC, 16A, 20x C13, 3.7kVA Outlet Metered and Switched, Zero U vertical

€ 1.554,00
Exclusief belasting

1PH, 230V AC, 16A (16A rated); 20 outlets: 20x C13; plug: IEC 60309 2P+E 6h 16A (Bottom-bottom feed), 3.7kVA; Outlet Metered/Switched, Zero U vertical PDU, SecureLock ready, high resolution color display with field replaceable controller, Ethernet, serial, 2x USB-A, USB-B and sensor connections

Aantal

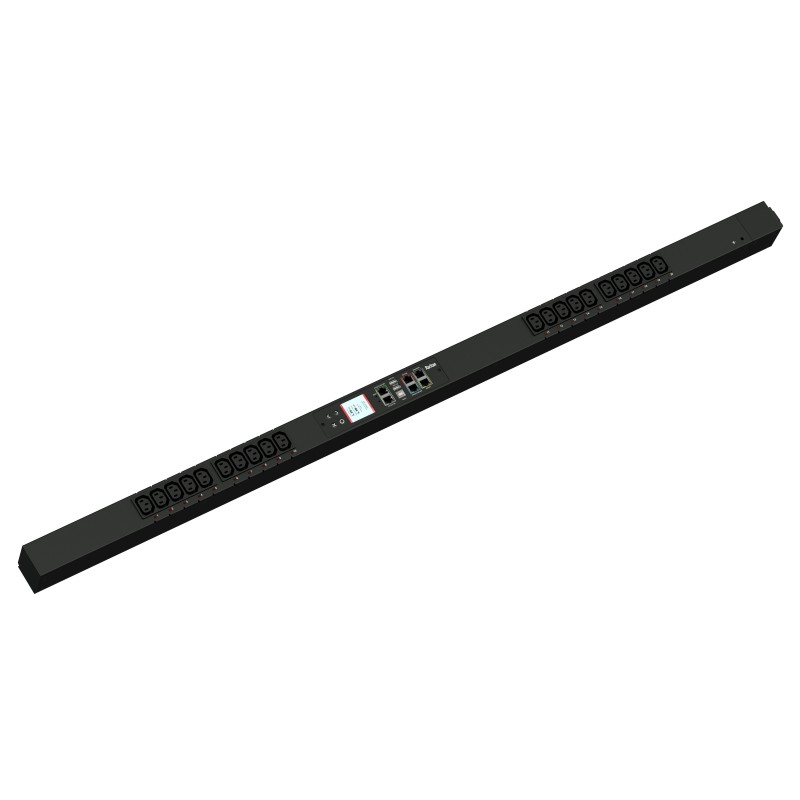

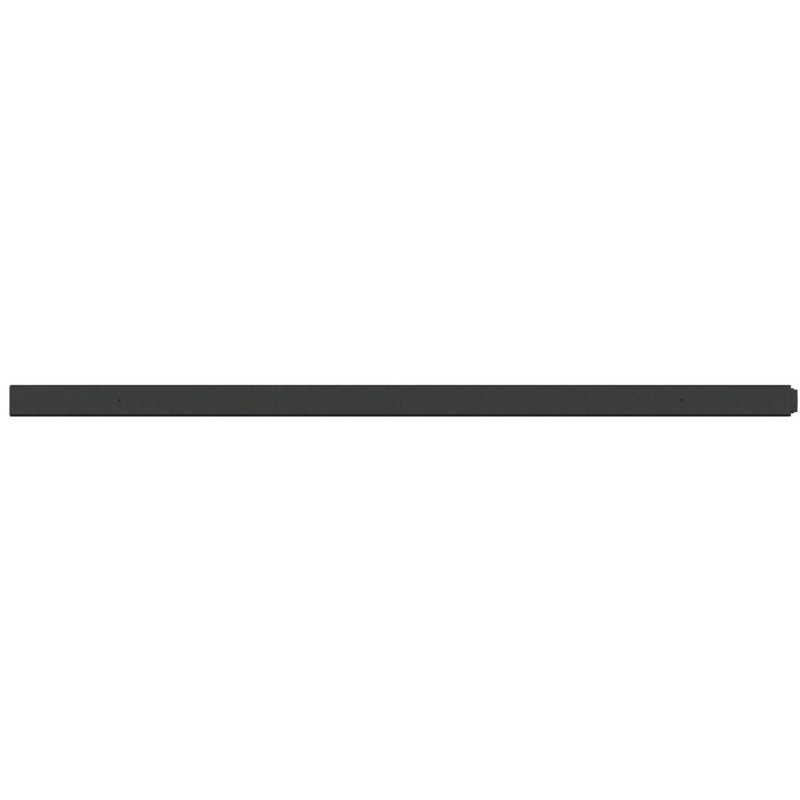

Monitored and switched rack power distribution unit (0U [vertical], 3.7kVA, 20 outlets).

INPUT: 230v, 16a - IEC 60309 2P+E 6h 16A plug (2P3W);

OUTPUT: 20x C13 outlets; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per outlet, Residual Current Monitoring Supported;

Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3.

Onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM.

Cascading upto 16 PDU's using single Ethernet or USB connection.

Environmental monitoring [temp/humidity] capable – up to 32 sensors.

Individual outlet numbers labeled on chassis.

Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives.

WiFi Capable. USB Webcam Capable.

iPad/iPhone/Android App.

Dual 10/100/1000 Ethernet port.

Tri-color status LED per receptacle.

Max Dimensions 52mm x 65mm x 1298mm (2.1in x 2.6in x 51.1in).

Max Weight 3.2 kg.

Maximum ambient temperature 60C at full load.

Raritan
PX3-5440V-M11

Datasheet

Phase
1
Volt
230
Ampère
16
Number of outlets
20
Type outlets
C13
Inlet plug
IEC 60309
kVA
3.7
Type
Metered and Switched
Form
0U
Cord length
3
Dimensions
52mm x 65mm x 1298mm
