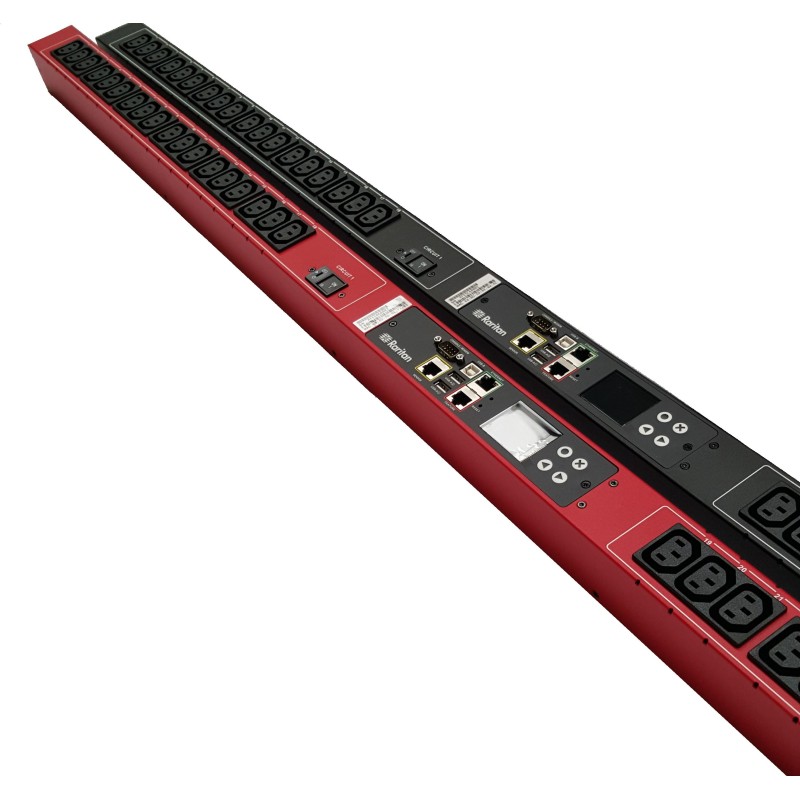

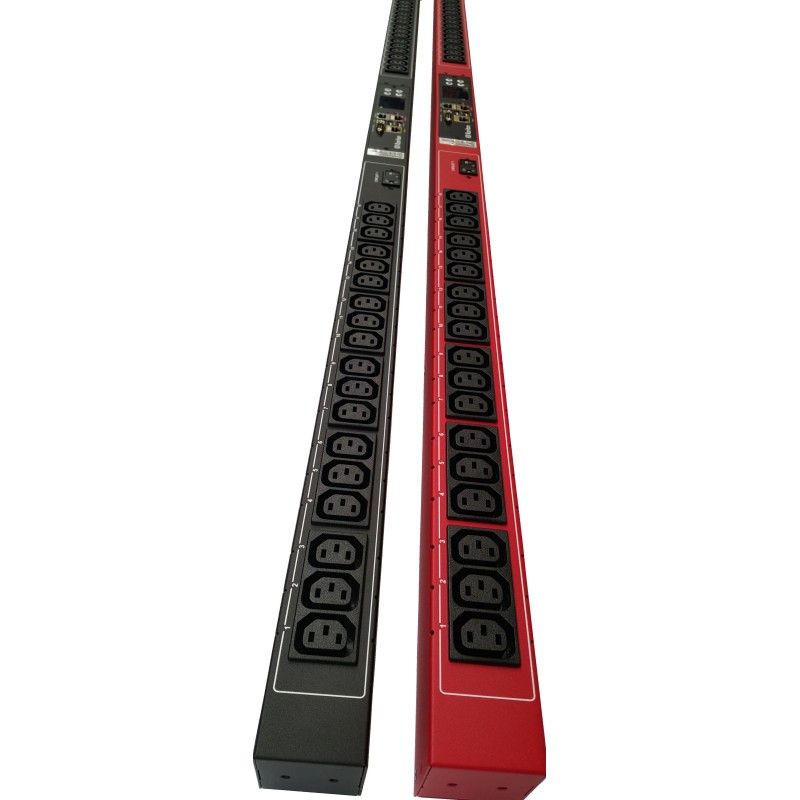

PDU 1PH, 230V AC, 32A, 36 outlets 36x C13, 7.4kVA Unit Metered, Zero U vertical
1PH, 230V AC, 32A (32A rated); 36 outlets: 36x C13; plug: IEC 60309 2P+E 6h 32A (Bottom-front feed), 7.4kVA; Unit Metered, Zero U vertical PDU, SecureLock ready, high resolution color display with field replaceable controller, Ethernet, serial, 2x USB-A, USB-B and sensor connections

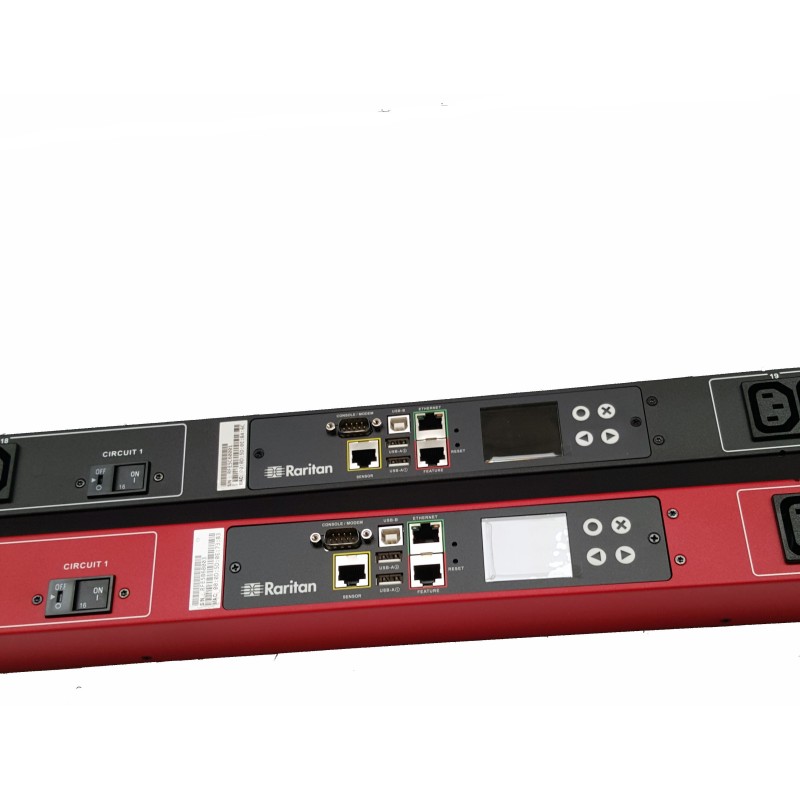

Monitored rack power distribution unit (0U [vertical], 7.4kVA, 36 outlets). INPUT: 230v, 32a - IEC 60309 2P+E 6h 32A plug (2P3W); OUTPUT: 36x C13 outlets; on 2x 1-pole, 16a Overcurrent Protectors; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per breaker/fuse; Color, matrix LCD display : Voltage, current, or active power (per line or per breaker); Alarms; Configuration information (name, ratings, IP / Networking).; Field-Replaceable, hot-swappable network module with 400MHz processor, 16MB NOR Flash, and 64MB SDRAM; (10/100) Ethernet portRemote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Environmental monitoring [temp/humidity] capable up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP/PXE, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Breaker metering and alarming (0V detection). Max Dimensions 52mm x 55mm x 1780mm (2.1in x 2.2in x 70.1in). Max Weight 6.5 kg. Maximum ambient temperature 60C at full load.
Data sheet
- Phase
- 1
- Volt
- 230
- Ampère
- 32
- Number of outlets
- 36
- Type outlets
- C13
- Inlet plug
- IEC 60309
- kVA
- 7.4
- Type
- Line metered
- Form
- 0U
- Cord length
- 3
- Dimensions
- 52mm x 55mm x 1780mm
