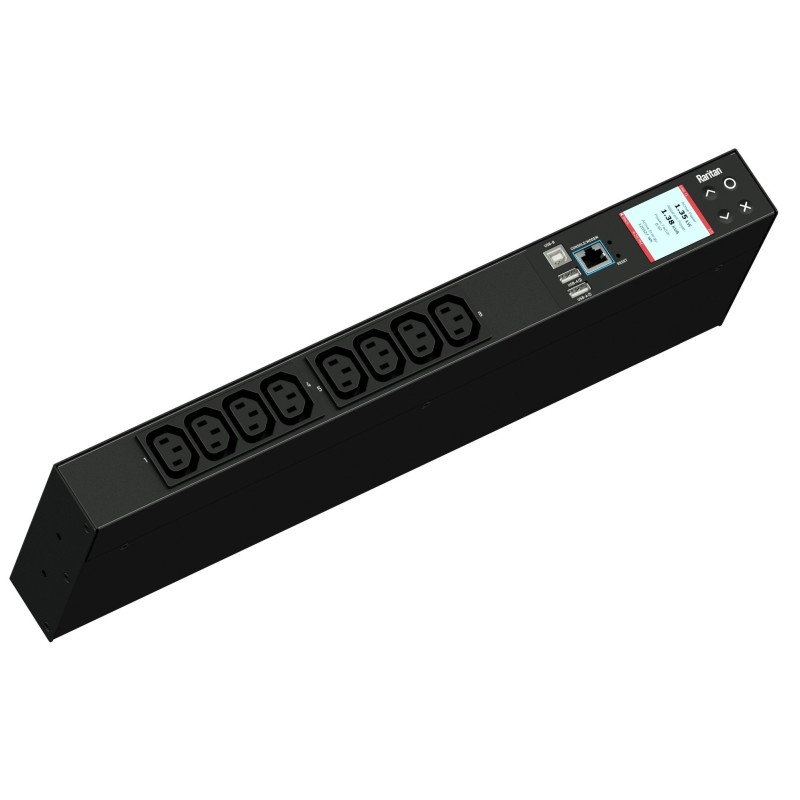

PDU 1PH, 230V AC, 16A, 8 outlets 8x C13 , 3.7kVA Unit Metered, 1U horizontal
1PH, 230V AC, 16A (16A rated); 8 outlets: 8x C13; plug: IEC 60309 2P+E 6h 16A (Rear feed), 3.7kVA; Unit Metered, 1U horizontal PDU, SecureLock ready, high resolution color display, Ethernet, serial, 2x USB-A, USB-B and sensor connections
Features
Energy Metering: Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
Metering Accuracy: ISO/IEC 62053-21 1%
Remote Outlet Switching: No
Metering per input line: Yes
Metering per Branch Circuit Breaker: No
Environmental Sensor Ready: Yes
Compatible Sensors: Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.
PDU Linking: Link up to 8 PDUs where the Primary PDU has knowledge and power information from the attached Expansion PDUs. Redundant power from the first expansion unit ensures uptime even if the Primary PDU loses power.
Cascading: Physically cascade 32 PDUs under one ethernet port or 16 PDUs with USB using bridging mode, or additionally, save IP addresses using a single IP address with port forwarding.
Networking: (10/100/1000 Base T) Ethernet, Secondary redundant (10/100/1000 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).
Onboard Display: Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation
Data sheet
- Phase
- 1
- Volt
- 230
- Ampère
- 16
- Number of outlets
- 8
- Type outlets
- C13
- Inlet plug
- IEC 60309
- kVA
- 3.7
- Type
- Unit Metered
- Form
- 1U
- Cord length
- 3
- Dimensions
- 440mm x 133mm x 44mm
