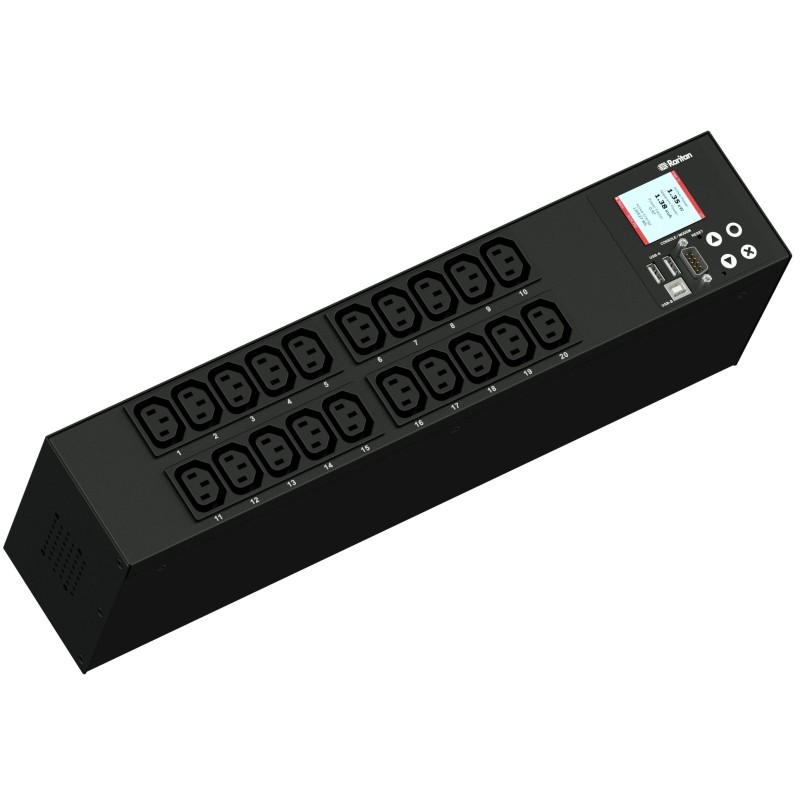

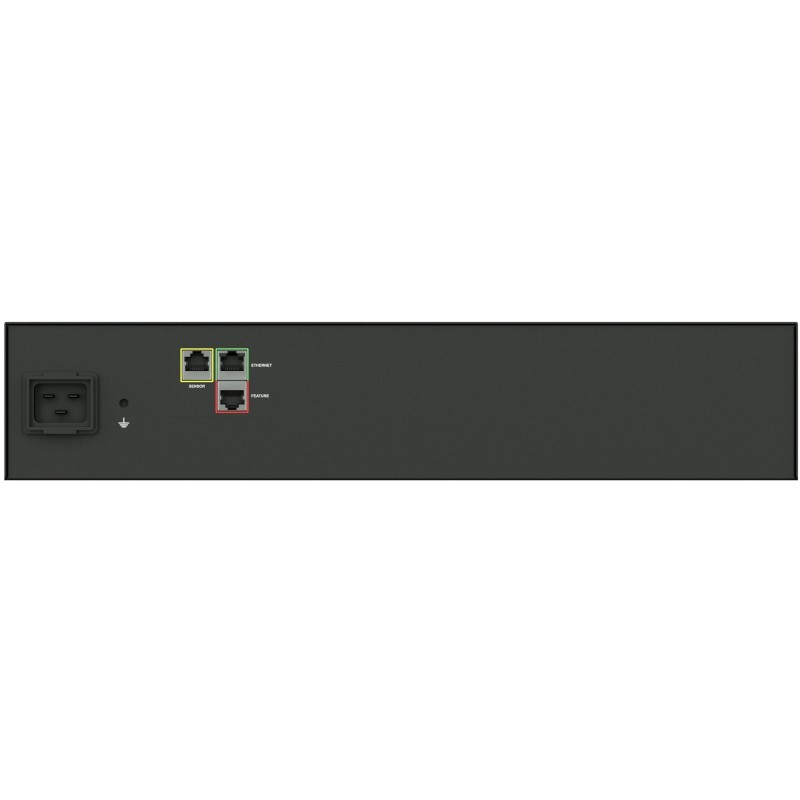

PDU 1PH, 230V AC, 16A, 20 outlets 20x C13, 3.7kVA Unit Metered 2U horizontal
1PH, 230V AC, 16A (16A rated); 20 outlets: 20x C13; plug: IEC 60309 2P+E 6h 16A (Rear feed), 3.7kVA; Unit Metered, 2U horizontal PDU, SecureLock ready, high resolution color display, Ethernet, serial, 2x USB-A, USB-B and sensor connections
Monitored rack power distribution unit (2U [horizontal], 3.7kVA, 20 outlets). INPUT: 230v, 16a - IEC 60309 2P+E 6h 16A plug (2P3W); OUTPUT: 20x C13 outlets; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet; Color, matrix LCD display : Voltage, current, or active power (per line); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation.; Field-Replaceable, hot-swappable network module with 400MHz processor, 16MB NOR Flash, and 64MB SDRAM; (10/100) Ethernet portRemote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Environmental monitoring [temp/humidity] capable up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP/PXE, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Max Dimensions 440mm x 133mm x 88mm (17.3in x 5.2in x 3.5in). Max Weight 3 kg. Maximum ambient temperature 60C at full load.
Data sheet
- Phase
- 1
- Volt
- 230
- Ampère
- 16
- Number of outlets
- 20
- Type outlets
- C13
- Inlet plug
- IEC 60309
- kVA
- 3.7
- Type
- Line metered
- Form
- 2U
- Cord length
- 3
- Dimensions
- 440mm x 133mm x 88mm
