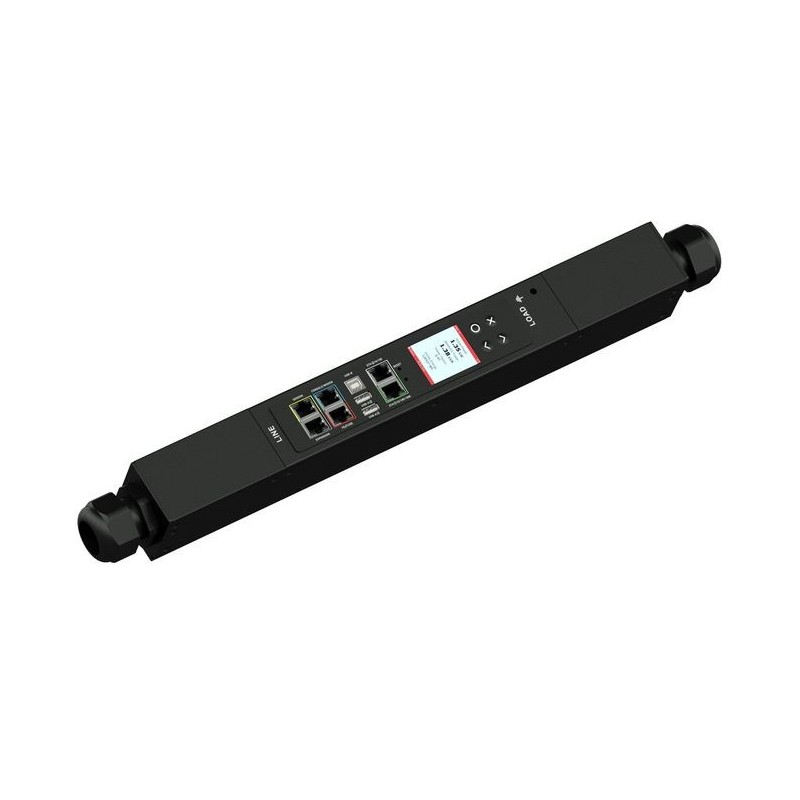

PDU 3PH, 380-415V AC, 16A, 16A,/PH, rated 1 line input type 1x IEC 60309 1x IEC 60309, Zero U
€891.00
Tax excluded
3PH, 380-415V AC, 16A (16A/PH rated), 1 line, input type: 1x IEC 60309 3P+N+E 6h 16A (Wye), output type: 1x IEC 60309 3P+N+E 6h 16A, Zero U, high resolution color display, Ethernet, serial, 2x USB-A, USB-B and sensor connections
Monitored rack power distribution unit (0U [vertical], 0kVA, 1 outlets).
INPUT: 400v (3-phase WYE), 16a - IEC 60309 3P+N+E 6h 16A plug (4P5W);
OUTPUT: 1x 3P+N+E 6h 16A outlets;
Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet;
Color, matrix LCD display :
Voltage, current, or active power (per line);
Alarms; Configuration information (name, ratings, IP / Networking information).
Auto-flip orientation.;
400MHz processor, 16MB NOR Flash, and 64MB SDRAM;
(10/100) Ethernet port
Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3.
Environmental monitoring [temp/humidity] capable up to 32 sensors.
Individual outlet numbers labeled on chassis.
Automated deployment via TFTP, DHCP/PXE, SSH(CLI), or USB Flash Drives.
WiFi Capable.
USB Webcam Capable.
iPad/iPhone/Android App.
Max Dimensions 52mm x 65mm x 439mm (2.1in x 2.6in x 17.3in).
Max Weight TBD.
Maximum ambient temperature 60C at full load.
PX3-3162
Data sheet
- Phase
- 3
- Ampère
- 16
- Type outlets
- IEC60309 3P, N, E6h16A (Wye)
- Inlet plug
- IEC 60309
- Type
- Line metered
- Form
- 0U
- Cord length
- 3
- Dimensions
- 52mm x 65mm x 439mm
