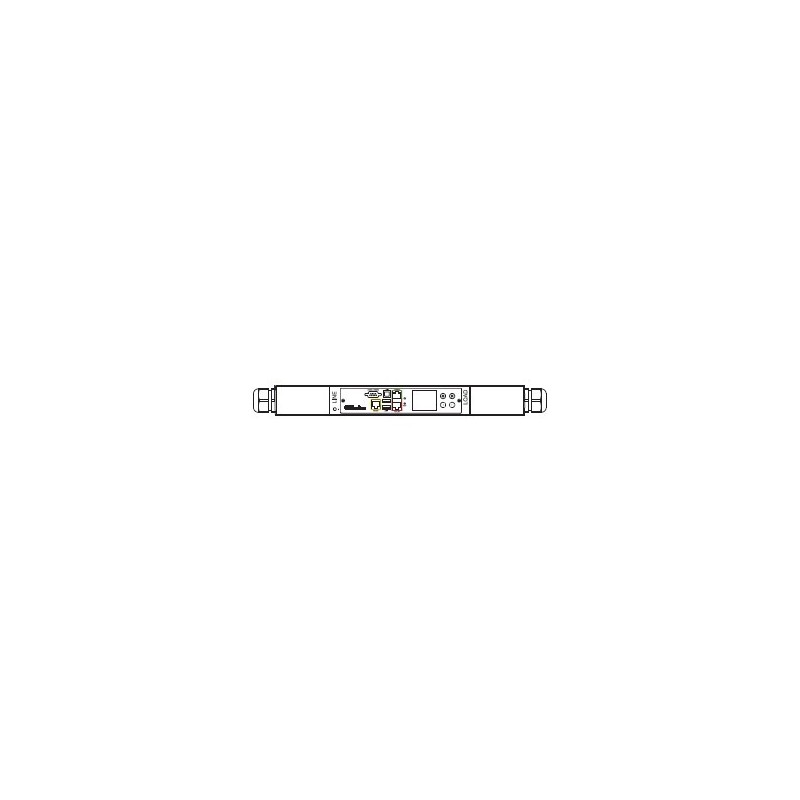

PX3-3170 PDU 3PH, 190-415V AC, 32A (32A/PH rated), 1 line, input type: 1x AC Terminal (Wye), output type: 1x AC Terminal, Zero U
search
  • PX3-3170 PDU 3PH, 190-415V AC, 32A (32A/PH rated), 1 line, input type: 1x AC Terminal (Wye), output type: 1x AC Terminal, Zero U
  • PDU 3PH, 190-415V AC, 32A, 32A,/PH, rated 1 line input type 1x
PX3-3170 PDU 3PH, 190-415V AC, 32A (32A/PH rated), 1 line, input type: 1x AC Terminal (Wye), output type: 1x AC Terminal, Zero U
PX3-3170 PDU 3PH, 190-415V AC, 32A (32A/PH rated), 1 line, input type: 1x AC Terminal (Wye), output type: 1x AC Terminal, Zero U PDU 3PH, 190-415V AC, 32A, 32A,/PH, rated 1 line input type 1x

PDU 3PH, 190-415V AC, 32A, 32A,/PH, rated 1 line input type 1x AC, Terminal 1x AC, Terminal, Zero U

€722.00
Tax excluded

3PH, 190-415V AC, 32A (32A/PH rated), 1 line, input type: 1x AC Terminal (Wye), output type: 1x AC Terminal, Zero U, high resolution color display, Ethernet, serial, 2x USB-A, USB-B and sensor connections

Quantity

Monitored rack power distribution unit (0U [vertical], 0kVA, 1 outlets). INPUT: 415v (3-phase WYE), 32a - Hardwired [AC Terminal Block, No Cord]; OUTPUT: 1x N/A outlets; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet; Color, matrix LCD display : Voltage, current, or active power (per line); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation.; 400MHz processor, 16MB NOR Flash, and 64MB SDRAM; (10/100) Ethernet portRemote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Environmental monitoring [temp/humidity] capable up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP/PXE, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Max Dimensions 52mm x 65mm x 439mm (2.1in x 2.6in x 17.3in). Max Weight 1.2 kg. Maximum ambient temperature 60C at full load.

Raritan
PX3-3170

Data sheet

Phase
3
Ampère
32
Number of outlets
1 line
Type outlets
AC Terminal
Inlet plug
ACTerminal
Type
Line metered
Form
0U
Cord length
3
Dimensions
52mm x 65mm x 439mm
